30mm 11.8g preform mould

30mm 11.8g preform mould

Focus on every detail of product manufacturing to create more value for customers.

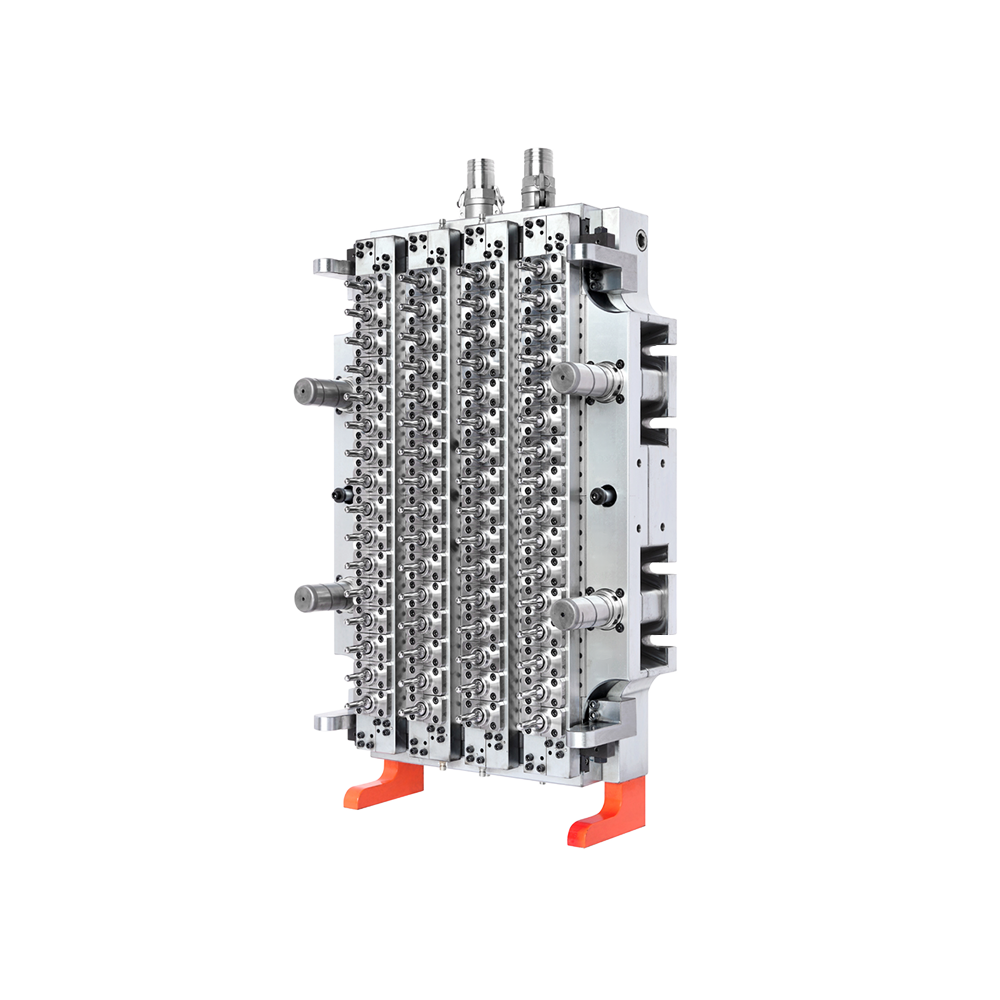

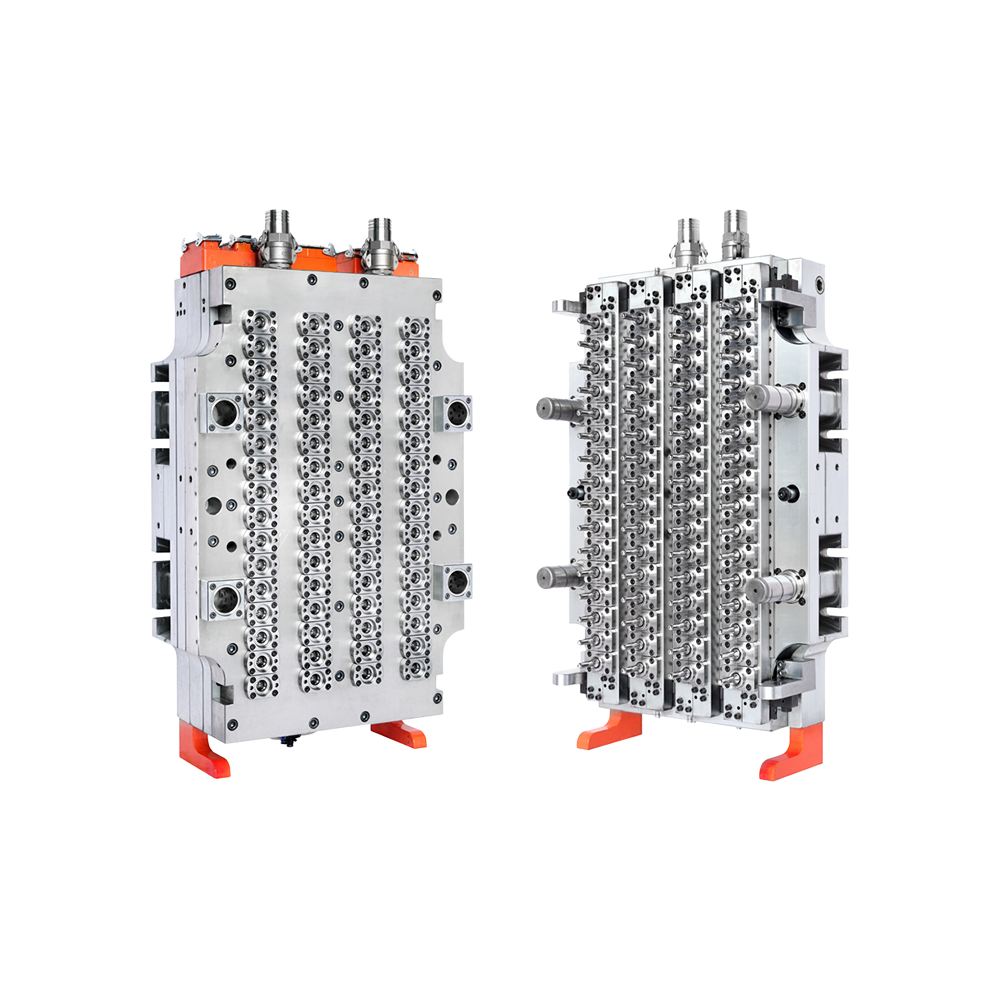

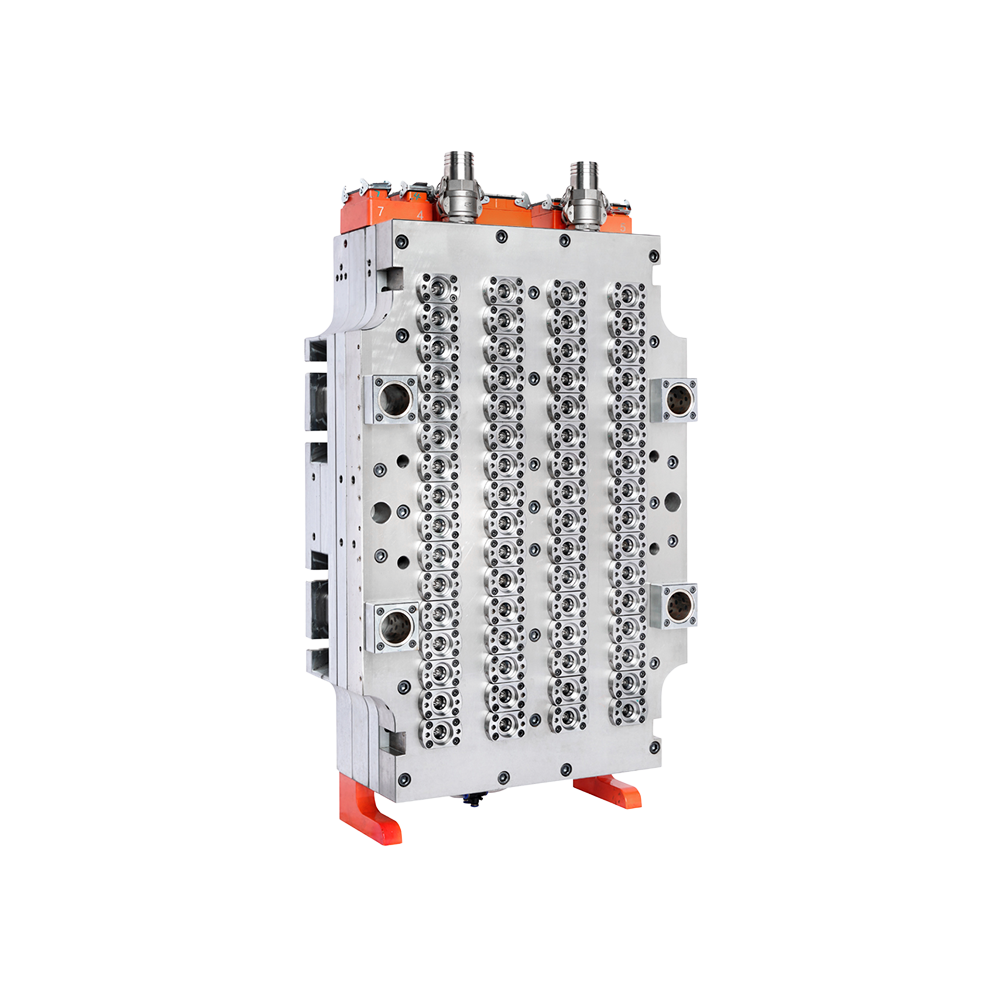

64 cavity 30 mouth 11 8g water bottle preform mould
It adopts multi-stage double taper positioning technology, each cavity has a single independent mold clamping, and adopts a multi-stage taper positioning system to ensure mold concentricity (eccentricity within 0.05-0.06mm). S136 (hardness>HRC45) is selected for the cavity and core of the mold. The threaded port is manufactured according to international standards, and the material is imported nitride steel (hardness>HRC60). The unique hot runner system ensures the same pressure and PET flow ratio of each cavity.
  1. We specialize in the production of needle valve molds without the need for manual cutting of the glue port.
  2. The use of advanced hot runner system ensures that the AA value of the product is at a relatively low level.
  3. Reasonable cooling water channel design strengthens the cooling effect of the mold and effectively shortens the injection cycle.
  • Lock way Double self-lock
    Preform neck 30mm
    Preform weight 11.8g
    Core&cavity S136
    Cavity No. 64
    Copper nozzle Material from Jiangxi
    Heating plate P20
    Heater strip Import Germany
    Sprue Runner H13
    Clinder,clinder cap,piston AL
    Valve pin Punch(from Japan)
    Insulation mat(cap) Dupont( from America)
    Copper plate Material from Jiangsu
    Heating ring Material from Guangdong
    Reducing elbow Material from Guangdong
    Temperature controller Material from Ningbo,Japan
    Mould plate 4Cr13/ P20
    Lifetime At least 2million Shots
    Hardness HRC45-HRC48
    Slide block P20
    Heat block P20
    Exporter country standard voltage 380V/3PH/50HZ
    Packing 1.Outside package:Standard wooden cases;2.Inner package: Stretch waterproof film & Each Mold painted anti-rust oil.
    Delivery time Within 40 working days after prepayment
    Term of Payment 30% T/T deposit,70% T/T before delivery after confirmation of testing samples.
    Guarantee 1Year after-sale service.If the mould is damaged without artifical damage,Engineers available to service machinery overseas
    Test parameters and videos will be sent  when testing the mould.

    It's Professional 30mm 11.8g Preform Mould with double self-lock. It adopts P20 core and cavity, S136 material from Jiangxi, Germany heater strip, Japan valve pin etc. Lifetime at least 2 million shots. We have exported this preform mould to many countries in Europe and America, such as USA, UK, Germany etc.
    Moulds are our main products,We have a variety of injection moulds and semi-moulds for your choose. We have been in this field for 10 years,We have good R&D team and experienced workers. We focus on the quality of our products and provide OEM & ODM service to make sure that you can buy cheap plastic mould with top quality.
    Pre-sale service:Free samples will be provided if necessary,our engineer is always online to answer your questions;We provide the high quality and professional service. There are many other kinds of molds in our factory, welcome to visit us to do business with us!
